What it is

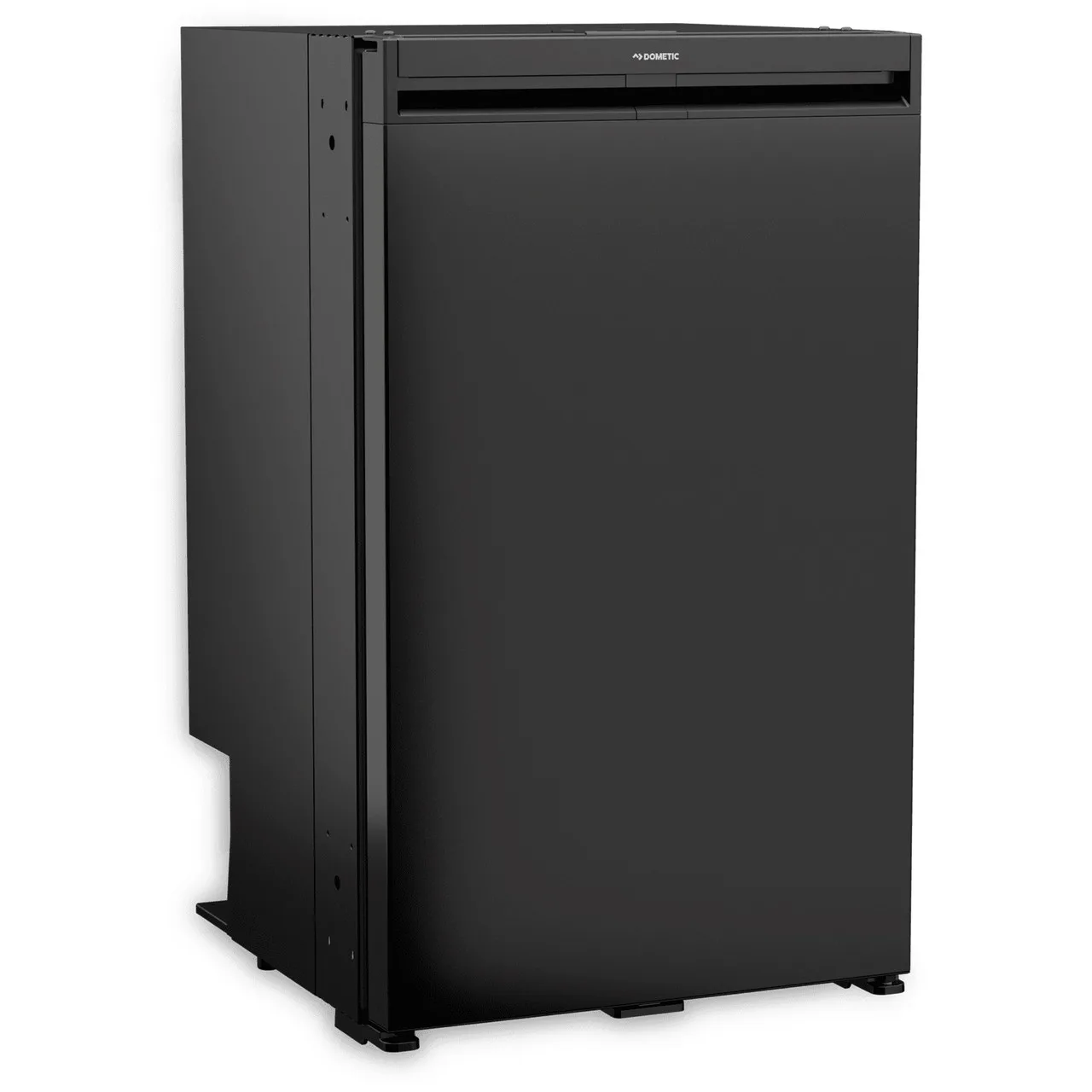

The NRX 90V is a 92-litre 12/24V compressor fridge-freezer aimed at motorhomes and larger vans replacing a tall absorption unit. The removable 8.4-litre freezer lets it run as a fridge, fridge-freezer or freezer.
It is the model to choose when you want near-domestic capacity in a tall, narrow-ish cabinet, with the efficiency of a compressor rather than gas.
Specifications
- Brand
- Dometic
- Range
- CoolMatic NRX
- Model
- NRX 90V
- SKU
- 9620006673
- Total volume
- 92 litres
- Freezer volume
- 8.4 litres (removable)
- External size (H × W × D)
- 821 × 486 × 480mm
- Weight
- 22 kg
- Power
- 12 / 24V DC, variable-speed compressor
- Energy use
- ~0.35–0.4 kWh/24h
- Noise
- as low as ~40 dB(A)
- Operating modes
- Eco / Boost / Silent
- Refrigerant
- R600a (low-GWP hydrocarbon — flammable; see fitting)
- Climate class
- T (tropical)
- Door hinge
- Reversible (left or right)
Dometic does not publish a cut-out box for the 90V — it is a cabinet-fit unit; allow airflow clearance and confirm dimensions in the manual. Note the refrigerant is R600a (a flammable hydrocarbon, small sealed charge) — follow the manual’s ventilation and no-flame guidance during install/service.
Manuals and datasheet
The official documents for this product, linked so you can read them before ordering or keep a copy if yours has gone missing.
Operating manual
Controls, Eco/Boost/Silent modes, the technical-data table and safety guidance for the R600a circuit.
Download the operating manual (PDF)Features

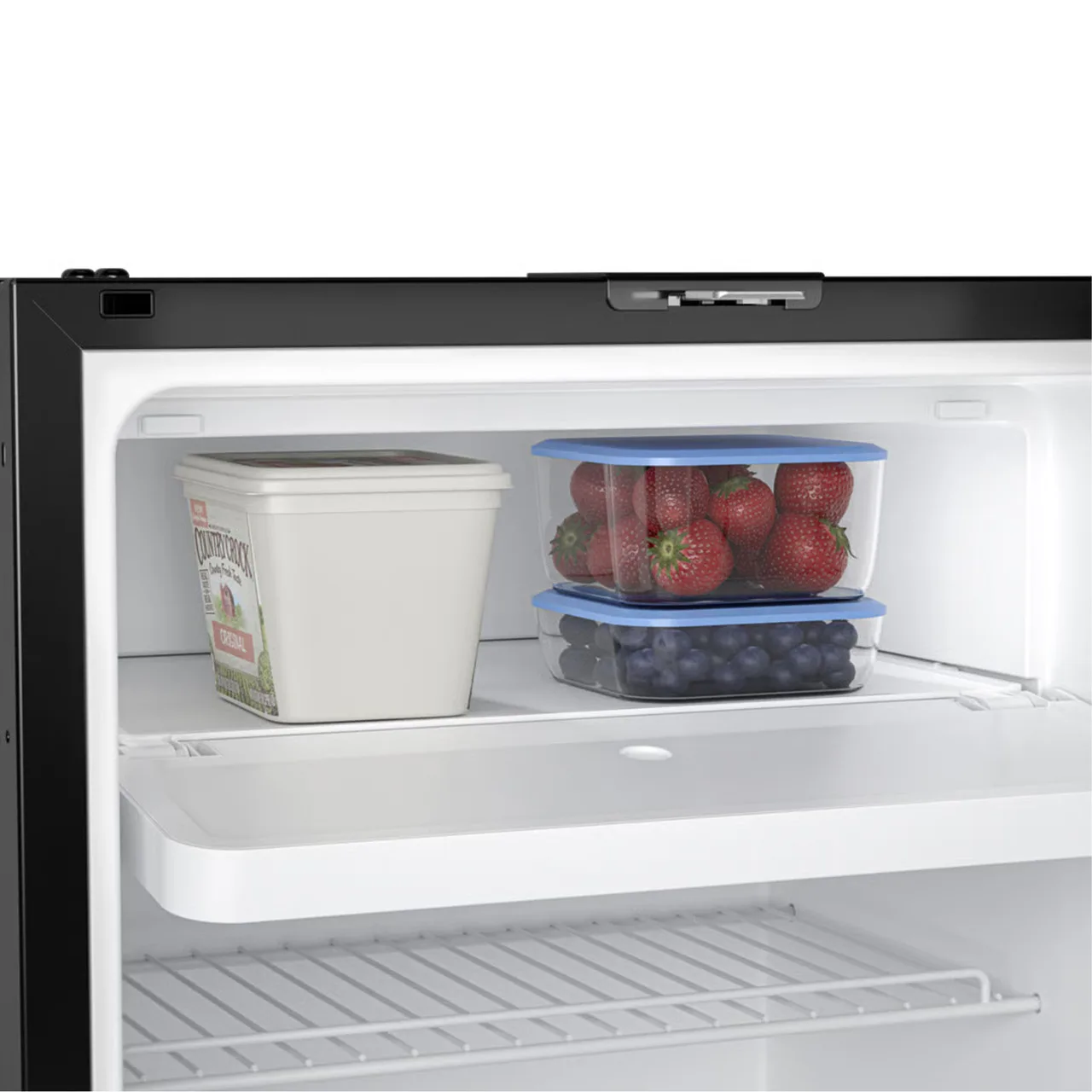

- 92 litres with a removable 8.4-litre freezer (3-in-1)
- Variable-speed compressor with Eco, Boost and Silent modes
- Very quiet — running noise as low as ~40 dB(A)
- Very low energy use (~0.35–0.4 kWh/24h) — a fraction of an absorption fridge

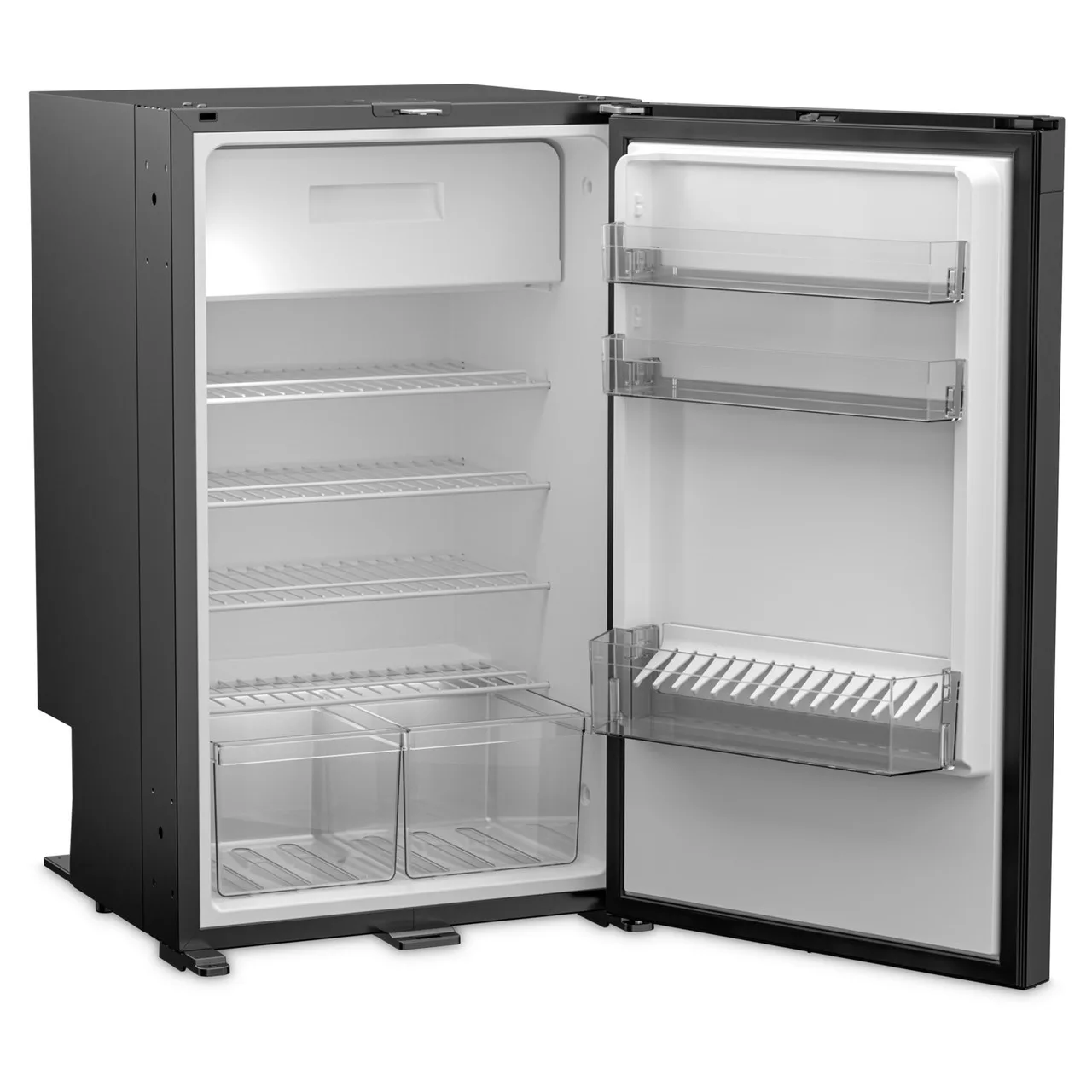

- Reversible hinge; frameless dark-silver door, full-width handle
- Low-GWP R600a refrigerant
Why we sell it
The 90V is the efficient way to get tall-galley capacity: near-domestic volume on 12/24V, quiet enough to sleep beside, and a straight swap for an old gas/absorption fridge.
- Tall-galley capacity. 92 litres for motorhomes and larger vans, without the inefficiency of a 3-way fridge.
- Quiet and frugal. As low as ~40 dB and roughly 0.35–0.4 kWh/24h — kind to batteries and to sleep.
- Drop-in for absorption. Designed to replace older gas/3-way fridges with a far more efficient DC compressor.
How it compares
vs an absorption (3-way) fridge
The 90V uses a fraction of the energy, cools strongly in heat, works off-level and needs no gas or external vents — but it does need a battery/charging supply (it has no LPG mode).
vs the smaller NRX uprights
Same controls and features, just taller and roomier — choose the 90V when 75 litres is not enough.
See our full guide: Campervan fridges explained.
Fitting it
- Refrigerant safety. It uses R600a (a flammable hydrocarbon in a small sealed charge) — follow the manual’s ventilation and no-naked-flame guidance during install/service.
- Ventilation. No external vents are needed as on an absorption fridge, but the compressor needs an airflow gap — confirm the clearance in the installation manual.
- Power. 12/24V on fused, correctly gauged cable; ~0.35–0.4 kWh/24h, drawing only while the compressor cycles.
- Door swing. Reversible hinge — decide the side before fitting.
What's in the box
- Dometic NRX 90V fridge-freezer
- Fitting instructions
Order alongside: fused 12V cable and ventilation grilles.
Questions and answers
Does it run on gas?
What refrigerant does it use, and is it safe?
How much power does it use?
How quiet is it?
Delivery and returns
- Free UK mainland delivery on this product.
- 14-day returns on unfitted, unopened units (we cover return postage). See our Returns Policy.
- Covered by the Dometic manufacturer warranty.
