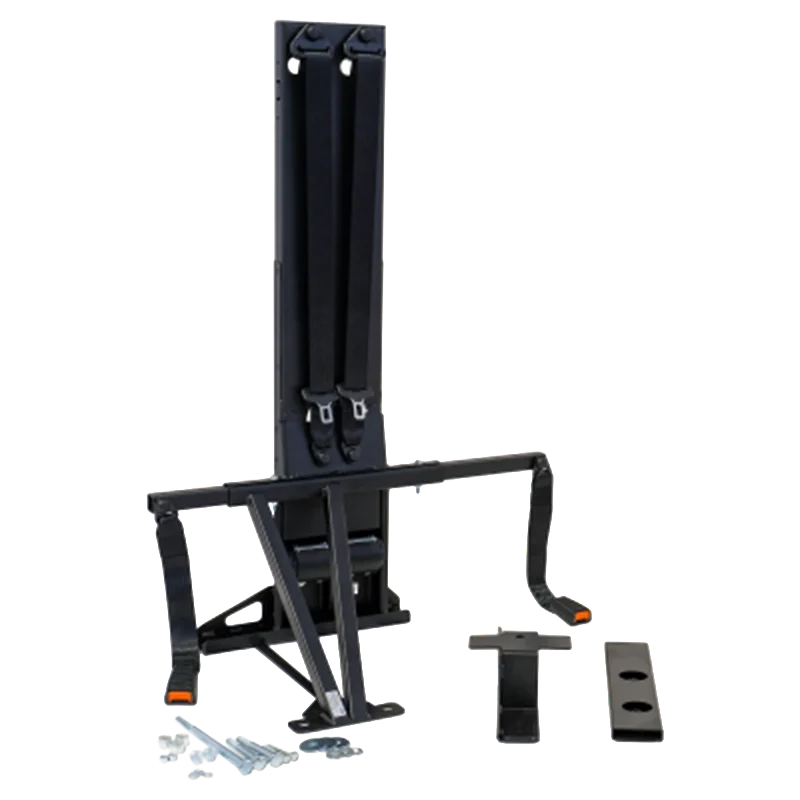

CTA Smart Kit for VW Crafter - Off-axis Belt Frame
The CTA Smart Kit is an approved seatbelt frame that lets you add a forward-facing twin (2-person) travel seat with integrated 3-point belts in the rear of a 2017-onward VW Crafter or MAN TGE.
The CTA Smart Kit is an approved seatbelt frame that lets you add a forward-facing twin (2-person) travel seat with integrated 3-point belts in the rear of a 2017-onward VW Crafter or MAN TGE. The "off-axis" frame is offset so its support strut runs along the chassis spar to one side, freeing usable floor space beside the seat (it's the UK right-hand-drive version, designed to sit behind the driver). It bolts to the chassis with the supplied brackets and fixings — no welding — and arrives with the belts already mounted.
Accessory
CTA Smart Kit for VW Crafter - Off-axis Belt Frame
The CTA Smart Kit is an approved seatbelt frame that lets you add a forward-facing twin (2-person) travel seat with integrated 3-point belts in the rear of a 2017-onward VW Crafter or MAN TGE.
The CTA Smart Kit is an approved seatbelt frame that lets you add a forward-facing twin (2-person) travel seat with integrated 3-point belts in the rear of a 2017-onward VW Crafter or MAN TGE. The "off-axis" frame is offset so its support strut runs along the chassis spar to one side, freeing usable floor space beside the seat (it's the UK right-hand-drive version, designed to sit behind the driver). It bolts to the chassis with the supplied brackets and fixings — no welding — and arrives with the belts already mounted.
Off-axis doubleVW Crafter / MAN TGE2017 onwardsBelts pre-mountedBolt-in (no welding)ISOFIX option
Specifications
What it is
Forward-facing double (2-seat) seatbelt frame
2 × integrated 3-point belts, pre-mounted
Off-axis — strut offset along the chassis spar
Fitment
VW Crafter / MAN TGE, 2017 on
Wheelbase 3640–4490 mm (MWB / LWB)
UK right-hand drive — fits behind the driver
Bolt-in to the chassis — no welding
Approval
Approved to current regulations (CTA)
Equivalent CTA frame in this series is ECE R14 / M1 approved

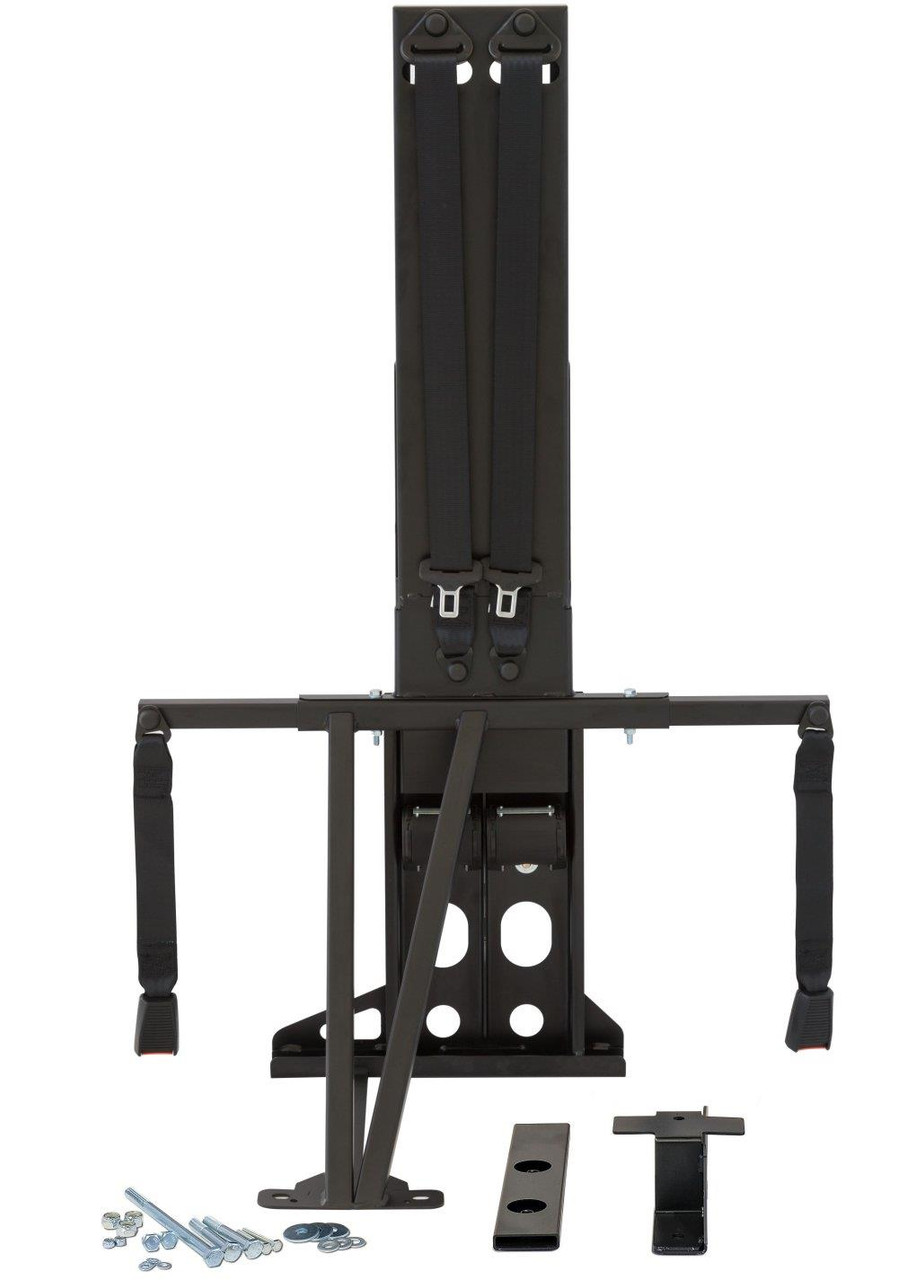

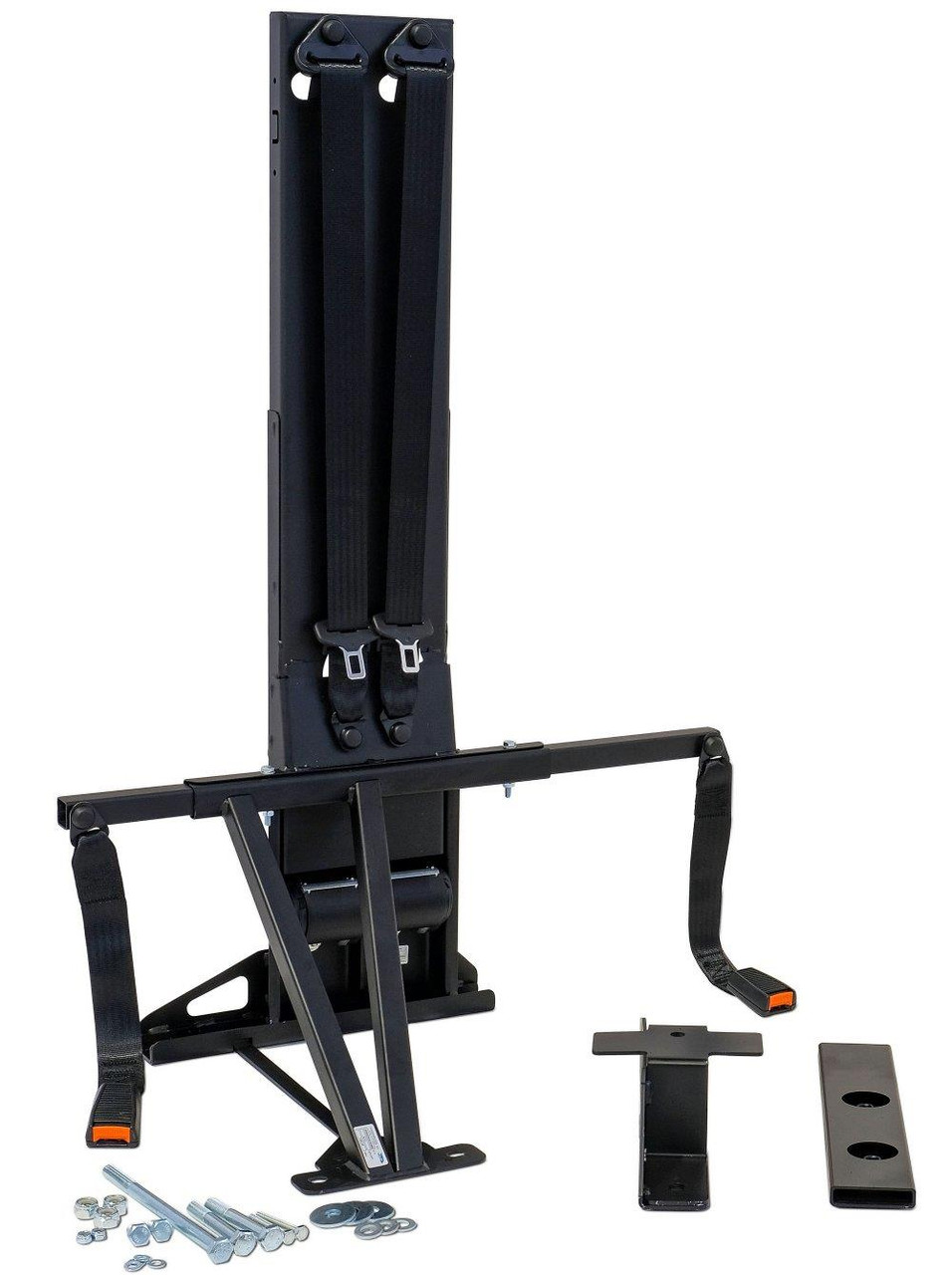

What you get
Upper belt frame with pre-mounted 3-point belts
Floor anchoring brackets + chassis fixing screws
Assembly instructions
Options
ISOFIX child-seat anchorage kit
Headrests
Build
Powder-coated steel, ~1265 mm frame height
Expert help, any time
Not sure it's right for your van or build? Contact us any time for expert guidance. No question is too small, and we can fit it as part of your VANZ conversion.
"Vantastic. Lee kept in touch throughout the build with phone calls / video calls this is how a business should be ran. There is no communication between companies nowadays they should take note from start to the finished fit out excellent workmanship thanks Lee"
Yes — it provides a properly anchored, forward-facing 3-point belted travel seat. CTA state all Smart Kit components are approved to current regulations, and the equivalent CTA frame in this series is type-approved to ECE R14 (anchorages) in the M1 passenger category. Legal compliance depends on it being installed to the chassis exactly per CTA's instructions.
Is it crash-tested?
It's a type-approved seatbelt anchorage — approval to ECE R14 involves load and strength testing of the anchorage. CTA's own wording is "approved according to current regulations" rather than a published crash-test certificate, so that's how we describe it.
Can I use child seats or ISOFIX?
Yes. The seats take standard 3-point belts (so belt-positioning child seats work), and CTA offer an optional ISOFIX kit made specifically for this off-axis double frame to add rigid ISOFIX anchor points.
Does it need welding?
No — it's a bolt-in kit using the supplied floor anchoring brackets and chassis fixing screws, designed to mount along the vehicle's chassis spar.
How many seats and belts is it?
It's the double version: a 2-seat forward-facing frame with two integrated 3-point belts.
What does "off-axis" mean?
The frame's support strut is offset to one side along the spar rather than centred, which keeps floor and storage space free beside the seat. You pair the frame with a compatible forward-facing twin bench or seat cushions.
Should it be professionally fitted?
We strongly recommend it. This is a safety-critical structural anchorage that must be bolted to the chassis exactly per CTA's instructions to keep its approval — so professional installation is the norm for belted travel seats, and we can fit it as part of a VANZ conversion.
