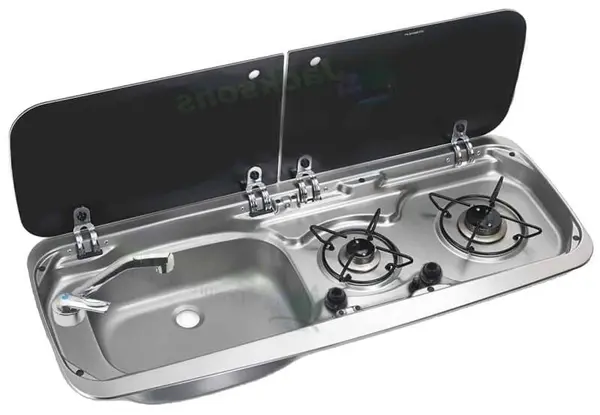

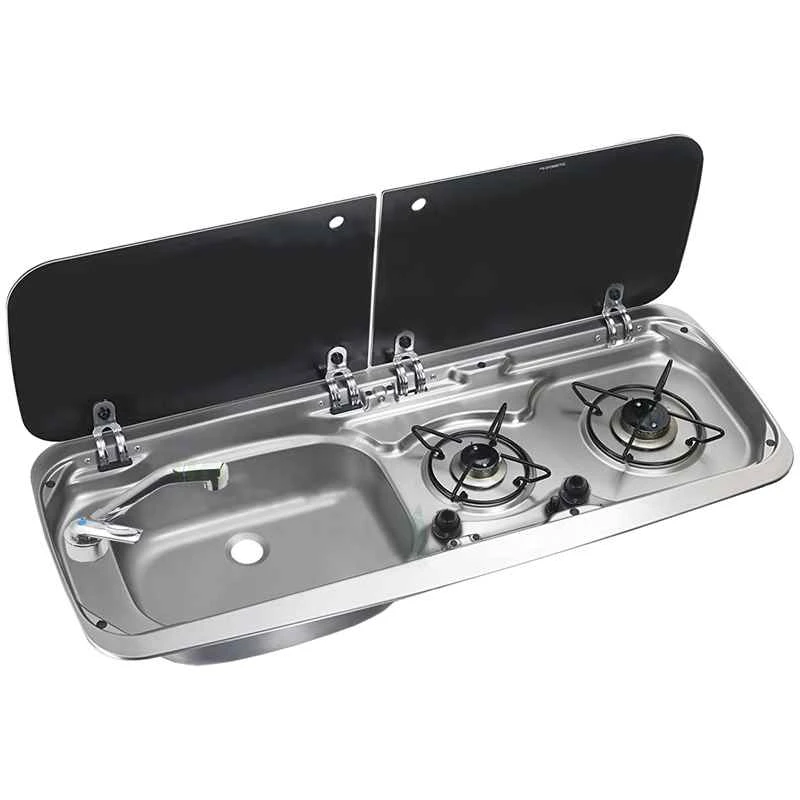

The Dometic 9222L (also sold as the SMEV 9222 / HSG 2370 L) is a space-saving combined kitchen unit that pairs a twin-burner LPG gas hob with a stainless-steel sink in a single 900 × 370 mm worktop insert.
The Dometic 9222L (also sold as the SMEV 9222 / HSG 2370 L) is a space-saving combined kitchen unit that pairs a twin-burner LPG gas hob with a stainless-steel sink in a single 900 × 370 mm worktop insert. Two heat-resistant glass lids fold down independently for extra worktop when the hob and sink aren't in use, and the burners (1.0 kW + 1.8 kW) have piezo ignition with a flame-failure safety device. The "L" layout places the sink on the left of the burners.
Appliance
Dometic 9222L Combined Sink & Hob
The Dometic 9222L (also sold as the SMEV 9222 / HSG 2370 L) is a space-saving combined kitchen unit that pairs a twin-burner LPG gas hob with a stainless-steel sink in a single 900 × 370 mm worktop insert.
The Dometic 9222L (also sold as the SMEV 9222 / HSG 2370 L) is a space-saving combined kitchen unit that pairs a twin-burner LPG gas hob with a stainless-steel sink in a single 900 × 370 mm worktop insert. Two heat-resistant glass lids fold down independently for extra worktop when the hob and sink aren't in use, and the burners (1.0 kW + 1.8 kW) have piezo ignition with a flame-failure safety device. The "L" layout places the sink on the left of the burners.
2-burner gas hobSink + hob comboTwin glass lidsStainless steelFlame-failure safety
Specifications
Hob
2 gas burners: 1.0 kW + 1.8 kW
Piezo (manual spark) ignition
Flame-failure device (FFD)
Detachable, easy-clean pan supports
Sink
Stainless-steel bowl, on the left (the "L")
20 mm waste outlet with syphon, plug & seal
39 mm tap hole — tap not included
Dimensions
Overall: 900 × 370 × 152 mm (W×D×H)

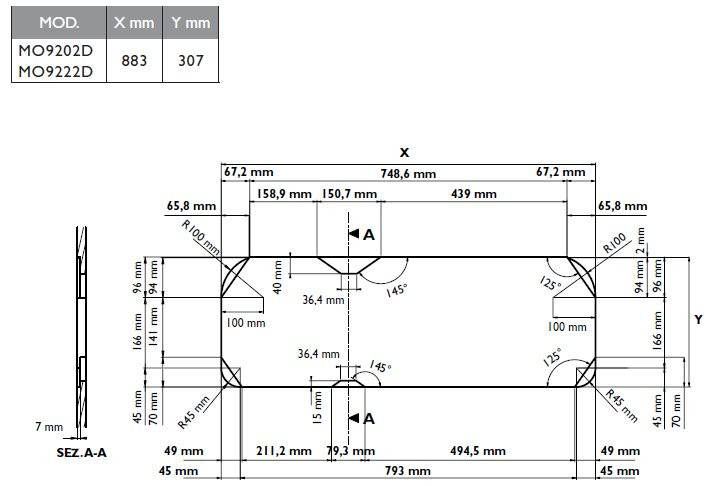

Worktop cut-out: 883 × 307 mm
Materials
Stainless-steel top
Twin heat-resistant safety-glass lids
Auto gas shut-off when a lid is closed
Gas
LPG — butane/propane at 30 mbar
Consumption ~204 g/h
CE certified
Weight
Approx. 6–7 kg
Expert help, any time
Not sure it's right for your van or build? Contact us any time for expert guidance. No question is too small, and we can fit it as part of your VANZ conversion.
"Vantastic. Lee kept in touch throughout the build with phone calls / video calls this is how a business should be ran. There is no communication between companies nowadays they should take note from start to the finished fit out excellent workmanship thanks Lee"
Standard LPG. Dometic rates it for butane (G30) at 30 mbar, and in the UK it runs happily on butane or propane through a correctly regulated 30 mbar supply, using about 204 g/h at full output.
How is the hob lit?
Piezo ignition — push and turn the control knob to spark each burner. There's no battery-powered auto-ignition on this model.
Is it safe if a flame blows out?
Yes. A flame-failure device shuts the gas off automatically if a burner goes out, and the glass lids are linked to an auto gas shut-off so the gas can't stay on with a lid closed.
What size cut-out do I need?
Cut an aperture of 883 × 307 mm. The unit is 900 × 370 mm overall and drops in from above, sitting about 152 mm below the worktop — leave clearance for the bowl, waste and gas pipe in the cabinet below.
Is a tap included?
No — the tap is bought separately. There's a 39 mm tap hole; many converters fit a folding tap or a 12V microswitched mixer that also triggers the water pump.
Which side is the sink on?
On the left (the "L" version). A mirror-image right-hand version (9222R) is also made if you'd prefer the sink on the right — just ask.
What comes in the box?
The combination unit with its waste kit (syphon, 20 mm outlet and sealing gasket) and detachable pan supports, plus a fitting template. The tap is separate.
