Fiamma awning brackets, Fiat Ducato / Boxer / Relay

Awning fitting kit

Fiamma awning brackets, Fiat Ducato / Boxer / Relay

From £96.95 inc VAT

A Fiamma F80S does not bolt straight to a van roof — it needs a van-specific bracket kit. This page covers the kits for the Fiat Ducato, Peugeot Boxer and Citroen Relay (one shared platform). Pick by roof height, wheelbase and rooflight. Fitment verified against the Fiamma 2026 catalogue.

Roof + wheelbase

£96.95

Inc VAT · Free UK mainland delivery

Typically dispatched in 1–3 working days

Ducato · Boxer · RelayH2 + H3 roofsF80S + F65SDrive-side neutral

Fit Finder

Which awning fits my van?

Answer a few questions and we'll point you at the right awning and mounting kit from Fiamma's fitment data.

What van do you have?

Pick your van and we'll find the right awning + kit for it, or point you to the wall-mounted F45s if the roof-mounted F80S isn't the one for your van. Motorhomes are confirmed manually (too many sub-models for an instant lookup).

Official Fiamma manual (PDF)

Which kit do I need?

The Ducato, Boxer and Relay are one platform, so the kit comes down to three things about your roof.

H2 medium roof (the common one)

  • Standard roof, L2 / L3 (MWB): kit 98655Z101. The default for most medium-roof Ducato conversions.

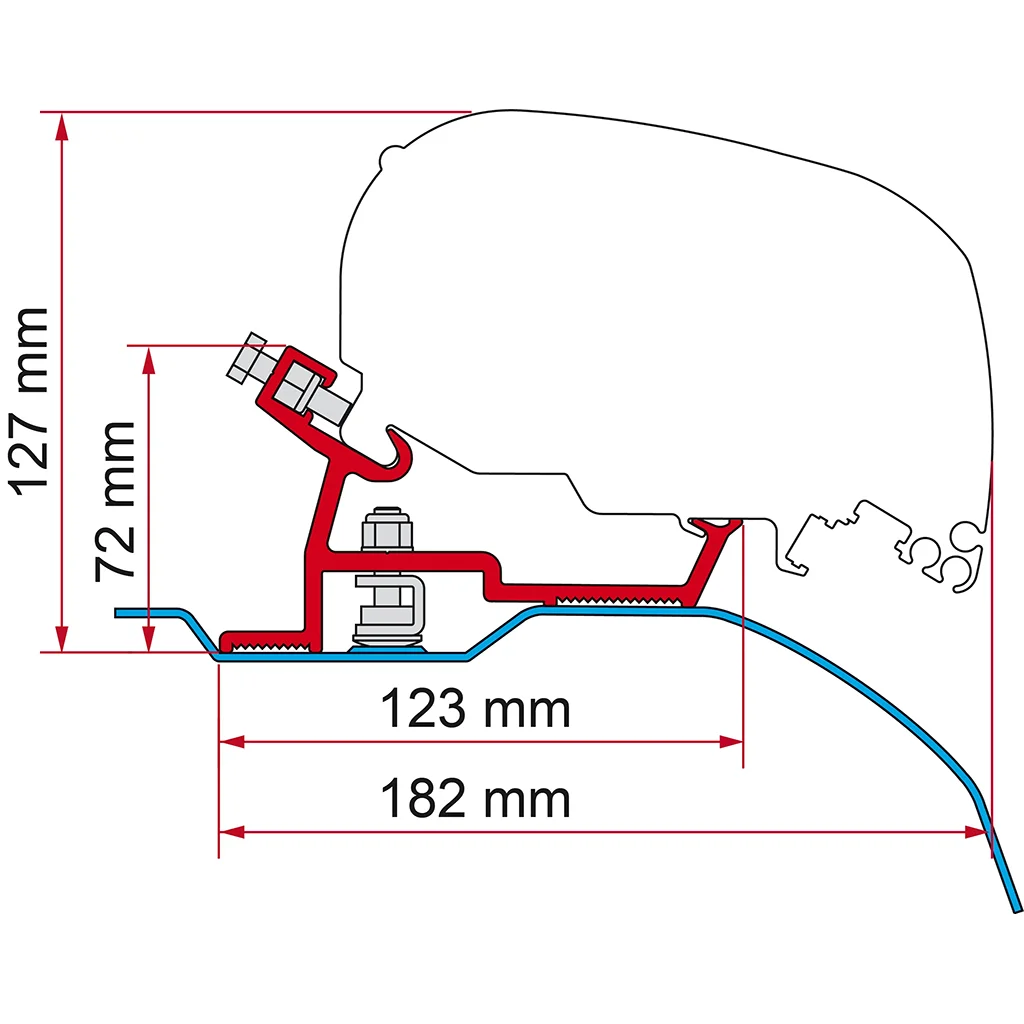

  • Standard roof, L4 (LWB): kit 98655-904 — the long-wheelbase version.
  • Low-profile roof: kit 98655Z149 (L2 / L3). A lower roofline at the fixing point needs the Low Profile brackets so the awning sits level.
  • Panoramic rooflight (Skyroof): kit 98655Z139. A front glass roof panel changes the fixing, so this is its own kit.

H3 high roof

  • H3, L3 or L4: kit 98655-656 covers both the medium and long wheelbase on the high roof — only the recommended awning length changes.

Black-finish and L4 low-profile kits exist too — they're in the reference table below and the Fit Finder will point you to one if your van needs it.

Kit reference

RoofWheelbasePart numberF80S lengthPrice
H2 standardL2 / L3 (MWB)98655Z101320–370cm£96.95
H2 standardL4 (LWB)98655-904400cm£117.95
H2 low-profileL2 / L398655Z149320–370cm£119.00
H2 + SkyroofL2 – L498655Z139320–400cm£116.11
H3 high roofL3 / L498655-656370–400cm£99.95
H2 low-profileL498655Z148400cmOn request
H2 black finishL2 / L398655Z102320–370cmOn request

All of these kits fit both the Fiamma F80S and the F65S awning, and all are drive-side neutral (the same kit fits left- and right-hand-drive vans). Fitment verified against the Fiamma 2026 catalogue.

"On request" kits are genuine fitments we order in for you — use the Fit Finder or contact us and we'll confirm the price and lead time.

A note on awning length

Match the F80S length to your wheelbase: roughly 320cm for an L2, 370cm for an L3, and 400cm for an L4 — but always measure your van's clear roof fixing run first, because the awning must not overhang the back of the van or foul the cab. The Fit Finder recommends a length alongside the kit.

Fitting it

  • Confirm roof and rooflight first. The kit depends on roof height, profile and whether you have a Skyroof. Ordering the wrong one is the most common bracket mistake; the Fit Finder removes the guesswork.
  • These kits drill the roof. The Ducato brackets fix through the roof skin. Every penetration is bedded and sealed with polyurethane sealant — a roof leak is the one mistake that ruins the interior below.
  • Two-person job. Lifting the awning onto the fitted brackets is not a solo task at any length.

None of this is beyond a methodical self-builder, and if you'd rather not drill the roof, a local installer will fit a supplied awning and kit in a few hours.

Questions and answers

Will a Fiamma F80S fit a Fiat Ducato, Peugeot Boxer or Citroen Relay?

Yes. All three are the same Sevel platform, so Fiamma uses one family of bracket kits across the lot. You need the kit that matches your roof height (H2 medium or H3 high), your wheelbase, and whether your van has a factory panoramic rooflight. Every kit fits the F80S.

Which bracket kit do I need for my Ducato?

Three questions decide it: is the roof H2 (medium) or H3 (high)? Is it a standard or low-profile roof? And does it have a panoramic "Skyroof" rooflight? The kit reference table on this page gives the part number for each combination. If you are unsure, use our Fit Finder or send us a photo of your roofline.

What's the difference between the standard and low-profile kit?

They suit different roof profiles on the same van. The standard kit (98655Z101) uses taller brackets; the Low Profile kit (98655Z149) is for vans whose roof sits lower at the fixing line. If you order the wrong one the awning will not sit level — the Fit Finder or a roofline photo removes the guesswork.

My Ducato has a panoramic rooflight (Skyroof) — does that change the kit?

Yes. A front panoramic rooflight changes the roof structure at the fixing line, so Fiamma make a specific Skyroof kit (98655Z139). Do not use the standard or low-profile kit on a Skyroof van. If you are not sure whether yours has one, it is the large glass panel above the cab.

Is my Ducato H2 or H3?

H2 is the medium roof — the most common UK conversion base. H3 is the extra-high roof you can stand up in well past 6ft. If you are between the two, measure the external roof height or send us a photo and we will confirm before you order.

Does the same kit fit a Peugeot Boxer or Citroen Relay?

Yes. The Ducato, Boxer and Relay share the Sevel platform and take the identical Fiamma kit. Match the kit to your roof and wheelbase exactly as you would for a Ducato.

Delivery and returns

  • Free UK mainland delivery on this product.
  • 14-day returns on unfitted, unopened kits (we cover return postage). See our Returns Policy.
  • Covered by the Fiamma manufacturer warranty.
