What it is
The NRX 80C is the larger upright in Dometic’s current NRX range — 75 litres with a removable freezer compartment, for bigger galleys that need more cold storage.
It is the natural choice for a long-wheelbase build or a couple touring for longer, where the 50/60 would be tight.
Specifications
- Brand
- Dometic
- Range
- CoolMatic NRX
- Model
- NRX 80C
- SKU
- 9620001483
- Total volume
- 75 litres
- Freezer volume
- ~6 litres (removable; Dometic quotes 6.6L frozen / 6.1L box)
- External size (H × W × D)
- 625 × 475 × 537mm
- Ventilation clearance
- ~50mm all round (confirm in the installation manual)
- Weight
- 20 kg
- Power
- 12 / 24V DC, ~55W, variable-speed compressor
- Energy use
- ~0.33 kWh/24h
- Operating modes
- Eco / Boost / Silent
- Refrigerant
- R134a
- Climate class
- T (tropical)
- Door hinge
- Reversible (left or right)
Manuals and datasheet
The official documents for this product, linked so you can read them before ordering or keep a copy if yours has gone missing.
Installation manual
Clearances, hinge reversal, mounting and the electrical connection.
Download the installation manual (PDF)Operating manual
Control panel, Eco/Boost/Silent modes, Winter Mode and the technical-data table.
Download the operating manual (PDF)Features

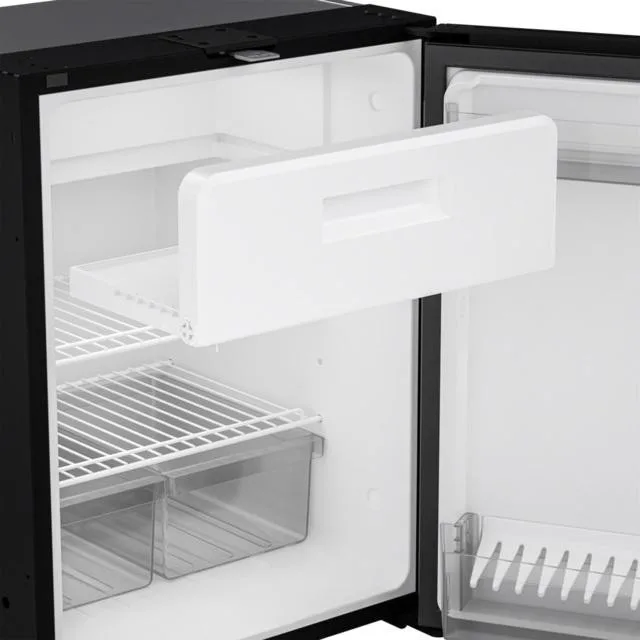

- 75 litres with a removable freezer compartment
- Variable-speed compressor, Eco/Boost/Silent, ~0.33 kWh/24h
- Winter Mode for healthy off-season storage

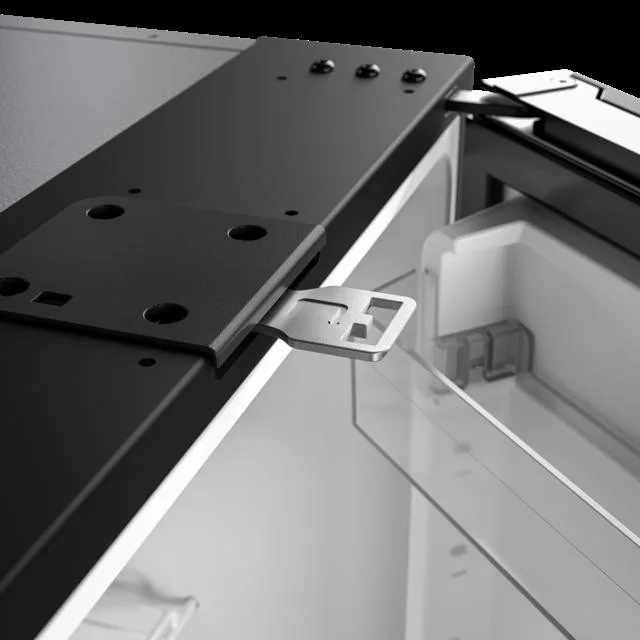

- Dual-function door locks that double as vents
- Reversible door hinge; frameless dark-silver door, full-width handle
- Two crispers and an LED-lit interior
Why we sell it
When the 50/60 is too small, the 80C gives you 75 litres of current-generation Dometic cooling without jumping to a tall tower cabinet.
- Big upright capacity. 75 litres in a 625mm-tall cabinet — a proper family fridge for longer trips.
- Efficient for its size. Around 0.33 kWh/24h with Eco/Boost/Silent modes.
- Current generation. Winter Mode, reversible hinge and refreshed electronics, with Dometic’s UK support.
How it compares
vs the Waeco WCR80
Same 75-litre class; the NRX adds the frameless door, three modes, Winter Mode and a tidier interior. The WCR80 is the value option.
vs an absorption (3-way) fridge
Far stronger cooling in heat, tilt-tolerant, no gas or flue needed — just 12/24V power.
See our full guide: Campervan fridges explained.
Fitting it
- Ventilation. Allow around 50mm airflow clearance (confirm in the installation manual) — inlet low, outlet high.
- Power. Rated ~55W on 12/24V; averages ~0.33 kWh/24h. Fused, correctly gauged cable.
- Door swing. Reversible hinge — decide the side before fitting. The dual-function locks can be left vented.
- Off-season. Use Winter Mode when the van is stored.
What's in the box
- Dometic NRX 80C fridge
- Fitting instructions
Order alongside: fused 12V cable and ventilation grilles.
Questions and answers
How big a cabinet does it need?
Is the freezer 6.1 or 6.6 litres?
What does it draw?
Can the door open either way?
Delivery and returns
- Free UK mainland delivery on this product.
- 14-day returns on unfitted, unopened units (we cover return postage). See our Returns Policy.
- Covered by the Dometic manufacturer warranty.
