Awning fitment
What awning fits a Renault Master / Vauxhall Movano / Nissan NV400?
On a Renault Master (and its Vauxhall Movano / Nissan NV400 twins) the awning to fit is the roof-mounted Fiamma F80S on the van-specific bracket. With a roof rack the wall-mounted F45S is fitted. Fiamma publish no UK-specific F45S size for this van, so on the rack path we confirm your exact size before charging.
Renault Master awning sizes by wheelbase
| Wheelbase | No roof rack (roof-mounted F80S) | With a roof rack (wall-mounted F45S) |
|---|---|---|
| MWB | Fiamma F80S 320cmbracket 98655-881 | Fiamma F45S 325cmsize confirmed before you pay |
| LWB | Fiamma F80S 370cmbracket 98655-881 | Fiamma F45S 375cmsize confirmed before you pay |
Sizes are the fit for each wheelbase. The awning length is set by the van's side run, so the roof-mounted and wall-mounted awnings take the same size for the same van. Aero roof bars need a bracket matched to your bars.
Get your exact fit and price
Fit Finder
Which awning fits my van?
Answer a few questions and we'll point you at the right awning and mounting kit from Fiamma's fitment data.
Showing the fit for Renault Master
Have you got a roof rack fitted?
An aftermarket roof rack or roof bars, the kind you'd carry gear or a board on. It changes which awning mounts to your van.

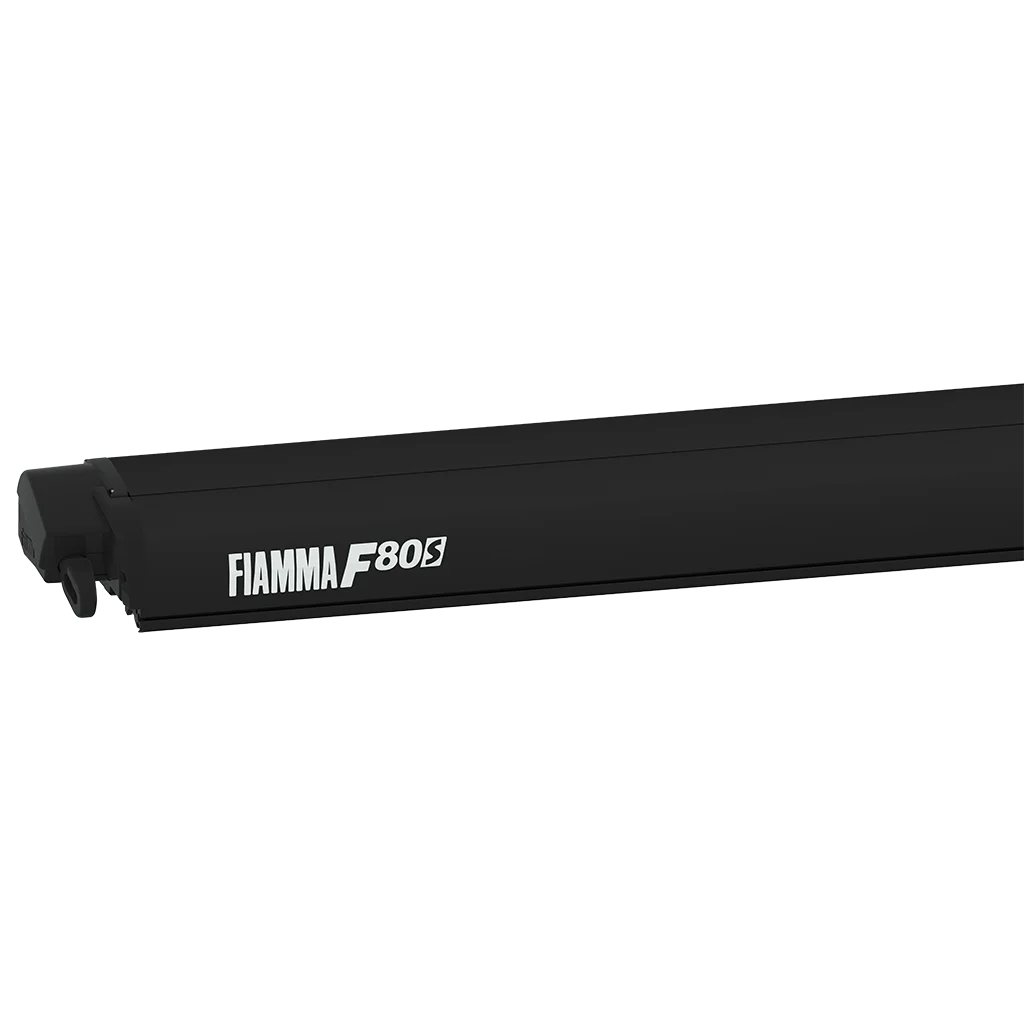

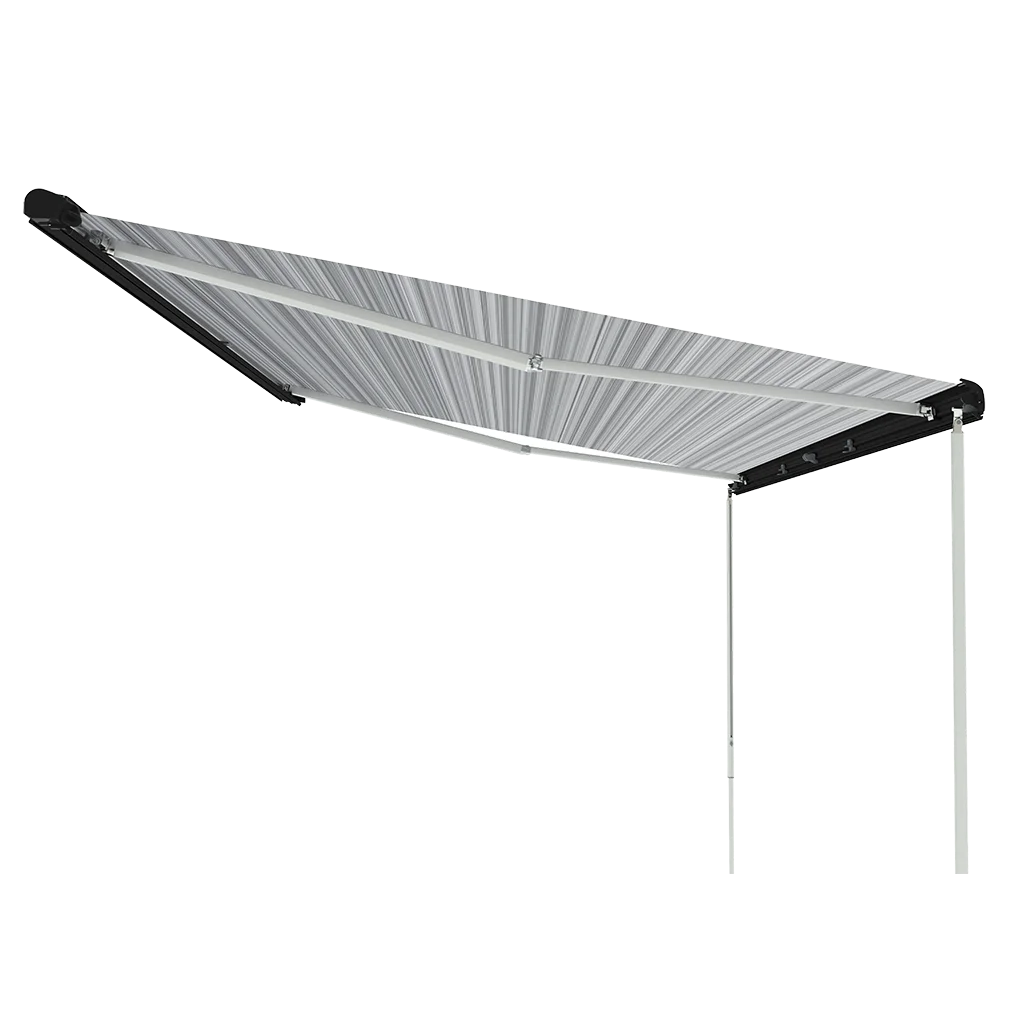

About the Fiamma F80S
The roof-mounted, low-profile Fiamma. It sits above door height and suits high-roof panel vans (Sprinter, Crafter, Ducato) with no clean side-wall fixing line. Sizes 290 to 450cm in Polar White, Titanium or Deep Black. Royal Grey or Royal Blue canopy (Deep Black is Royal Grey only). It needs a van-specific bracket kit, which the Fit Finder has already matched for you above.
- Mount
- Roof-mounted (low profile)
- Sizes
- 290 to 450cm
- Case colours
- Polar White, Titanium, Deep Black
- Fabric
- Royal Grey or Royal Blue
- Operation
- Manual crank (electric motor kit optional)
- Bracket
- Van-specific kit required (matched above)
Manuals & documents
Common questions
Do I need a bracket kit for a Fiamma F80S?
Yes, always. The F80S does not fit any van without a van-specific bracket kit, bought separately. The Fit Finder has confirmed the exact part for your van above.
Can I fit a Fiamma F80S myself?
Yes, if you are a confident self-builder, but it is a two-person job to lift the awning onto the roof, and any roof drilling must be sealed properly. If you are not sure about the roof fixing, use an installer.
What is the difference between the F80S and the F45?
The F80S is roof-mounted; the F45 range is wall-mounted. Roof mounting suits vans with no clean side-wall fixing line and places the awning above door height.
Is the F80S manual or electric?
It comes with a hand crank for manual wind-out. Fiamma sells an optional electric motor kit that can be added later, and the awning is ready for optional LED lighting on the lead bar and rear casing.
Renault Master awning FAQs
What awning fits a Renault Master?
The roof-mounted Fiamma F80S on the Master bracket (98655-881), or the wall-mounted F45S on a roof rack. On the rack path we confirm the exact F45S size with you first.
Do you cover the Vauxhall Movano and Nissan NV400?
Yes — they are the same van as the Renault Master and take the same awning and bracket.
