What it is

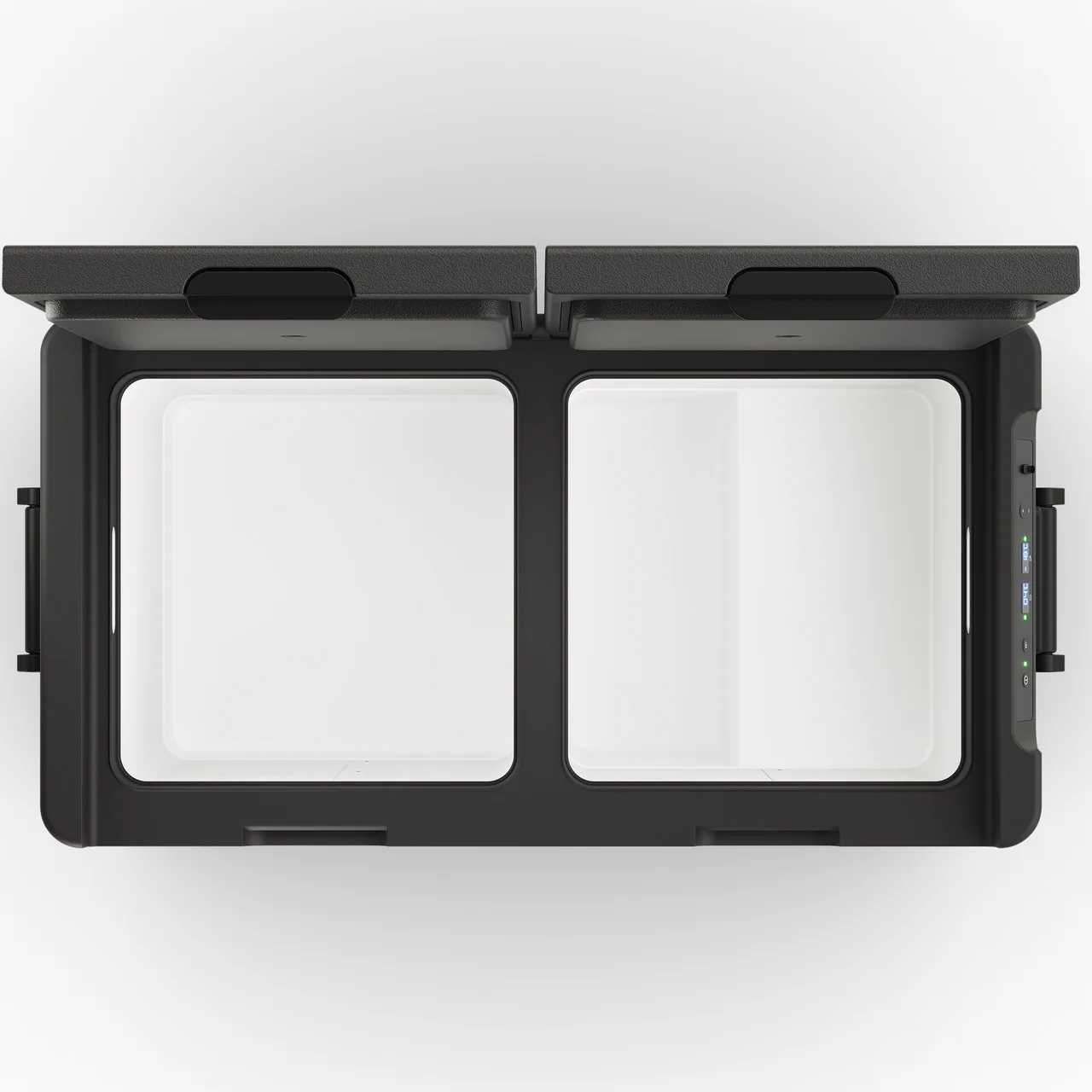

The WCC80DZ is a 78-litre dual-zone portable compressor coolbox — its defining feature is two separately-controlled compartments, so you can keep fridge items in one and frozen items in the other at once.
Like the rest of the WCC range it is a carry-anywhere box running on 12/24V, not a fitted built-in fridge.
Specifications
- Brand
- Dometic (Waeco)
- Model
- WCC80DZ (dual zone)
- SKU
- 9630001973
- Capacity
- 78 litres (two zones)
- Temperature range
- +20°C to -18°C (per zone)
- External size (H × W × D)
- 457 × 890 × 500mm
- Weight
- 22.8 kg
- Power
- 12 / 24V DC, ~47W
- Refrigerant
- R600a
- Mains use
- Optional Waeco mains adapter (sold separately)
Manuals and datasheet
The official documents for this product, linked so you can read them before ordering or keep a copy if yours has gone missing.
Operating manual
Official Waeco WCC range safety + operating manual (covers WCC18–80DZ, incl. the dual-zone functions).
Download the operating manual (PDF)Features
- Dual zone — two compartments, each with its own temperature control
- Run one as a fridge and the other as a freezer at the same time
- Each zone can be switched on/off independently to save power

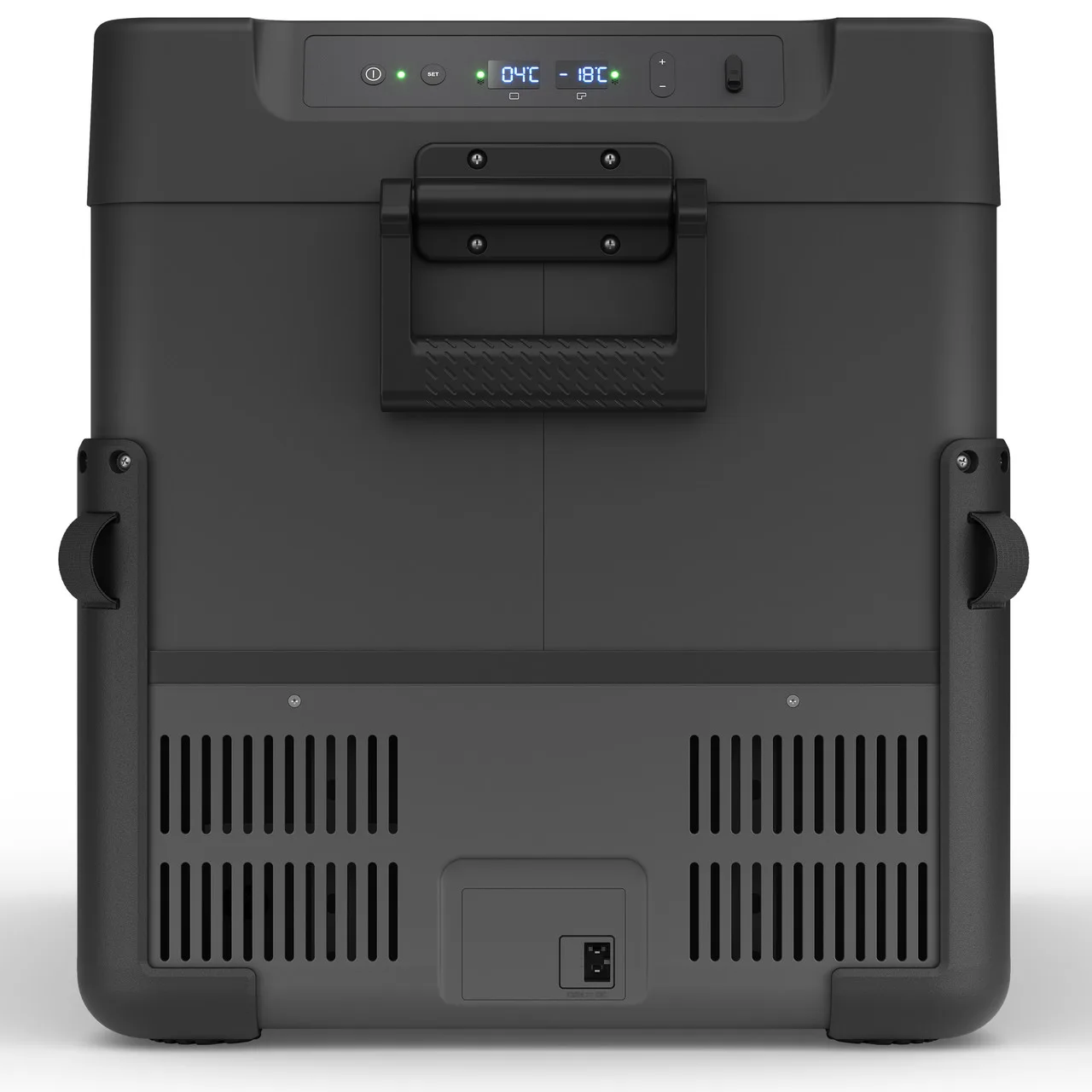

- Digital display; USB-C charging plus a daisy-chain loop
- 3-stage battery protection; rugged corners and integrated feet
- Removable lid and space-saving drop-down handles
Why we sell it
The WCC80DZ is the one-box fridge-and-freezer: two independent zones mean you do not have to choose between chilled and frozen, all from a single portable unit.
- Fridge and freezer at once. Two independently-controlled compartments — chill one side, freeze the other.
- Power-flexible. Switch off one zone when you do not need it to save battery.
- Biggest WCC. 78 litres of portable capacity for longer trips and bigger groups.
How it compares
vs the single-zone WCC60
The 80DZ runs fridge and freezer temperatures at once and lets you power each side independently; the WCC60 is one compartment at one temperature.
vs a built-in fridge-freezer
The 80DZ stays fully portable (handles, removable lid, no cut-out) at the cost of the fitted, door-access convenience of a built-in.
See our full guide: Campervan fridges explained.
Power and everyday use
- Power. Runs on 12/24V DC; add the optional Waeco mains adapter (sold separately) for 230V.
- Battery safe. 3-stage battery protection lets you leave it plugged into the vehicle.
- Carry and clean. At 22.8 kg empty it is best lifted by two; drop-down handles on both sides, removable lid for cleaning.
What's in the box
- Waeco WCC80DZ dual-zone coolbox
- 12/24V DC connection cable
Optional: Waeco mains adapter for 230V use (sold separately).
Questions and answers
What does "dual zone" mean?
What is its real capacity?
Does it need mains power?
How heavy is it?
